Centrifugal Pump
Pump Type: Centrifugal
Capacity: 68-6080m³/h
Head: 7-306m
Size: Suction DN150-DN600, Discharge DN100-DN450
Original: China
DESCRIPTION

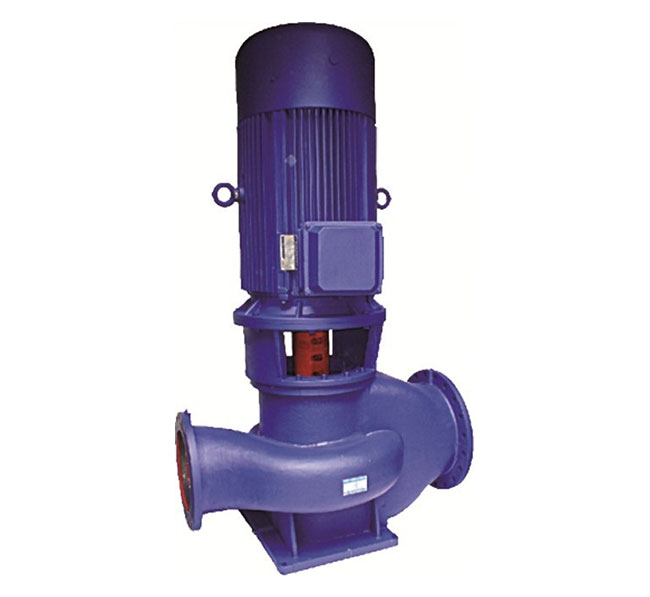

SLSSL type vertical double-suction centrifugal pump is single stage double suction pump, vertical, and the type pump use SW type of pump performance parameters, the structure characteristics of the vertical pipe pump, bold breakthrough in the overall structure design, pump base built-in water lubricated bearing structure, has solved the original stent is too high, the heavy parts, maintenance need someone too much. It has the characteristics of stable performance, long service life and high efficiency. At the same time SLSSL structure solves the problem of difficult to replace the mechanical seal of the pump.
APPLICATIONS
SLSSL type vertical double suction centrifugal pump, this series of products are widely used in waterworks, pumping stations, air conditioning circulation water, heating hot water circulation, industrial system water supply system, fire protection system, shipbuilding industry, and also suitable for general use in oil refining industry.

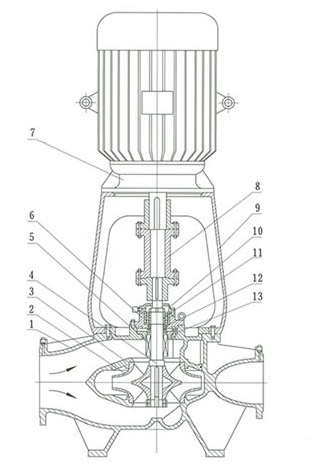

CONSTRUCTION DRAWING
1. Frame Plate 2. Impeller 3. Cover Plate 4. Shaft 5. Mechanical Seal 6. Bearing House 7. Motor
8. Shaft Coupling 9. Motor Base 10. Shaft Gland 11. Bearing 12. Grease Seal 13. Gland Cover
PERFORMANCE PARAMETERS
| Type | Capacity/Q(m3/h) | Head （m） | Speed/n(r/min) | Max Efficiency η(%) | Max Power (kW) | Size(mm) | |
|---|---|---|---|---|---|---|---|
| Suction | Discharge | ||||||
| SLSSL 150 | 68-470 | 18.8-146 | 2960 | 82 | 200 | 150 | 100 |
| SLSSL 200 | 114-640 | 30-200 | 2960 | 83 | 450 | 200 | 125 |
| SLSSL 250 | 200-640 | 21-225 | 1480 | 83 | 800 | 250 | 150 |
| SLSSL 300 | 300-1650 | 30-170 | 1480 | 81 | 800 | 300 | 200 |
| SLSSL 350 | 320-1700 | 7-220 | 1480 | 82 | 1250 | 350 | 250 |
| SLSSL 400 | 340-2520 | 13-306 | 1480 | 84 | 2500 | 400 | 300 |
| SLSSL 450 | 380-4080 | 20-254 | 1480 | 86 | 2800 | 450 | 350 |
| SLSSL 500 | 415-3600 | 6-150 | 990 | 85 | 2500 | 500 | 400 |
| SLSSL 600 | 874-6080 | 11-173 | 990 | 85 | 2500 | 600 | 450 |
