Chemical Pump
Pump Type: Centrifugal
Capacity: 2-540m³/h
Head: 11.5-114m
Size: Suction DN25-DN200，Discharge DN25-DN150
Original: China
DESCRIPTION
SLSAFB type horizontal stainless steel corrosion resistant pump is a single stage single suction cantilever corrosion resistant centrifugal pump, by centrifugal impeller, single shell pump body, pump shaft, bearing, shaft seal, base and other main components.The company absorbs the characteristics of all kinds of pumps in the 1990s, adopts advanced hydraulic model, novel structure and high strength combined double end face mechanical seal, the part of the pump and transmission medium contact flow is made of stainless steel 1Cr18Ni9Ti, which has the advantages of high efficiency, energy saving, compact structure, stable performance and reliable use.
APPLICATIONS
SLSAFB type horizontal stainless steel corrosion resistant pump this pump is suitable for conveying not containing solid particles and corrosive liquid, strong acid, strong alkali, ethanol, bleach, photographic liquid, nitric acid, hydrochloric acid, hydrofluoric acid, acetic acid, sodium hydroxide, acetone, four oxygen ethane, seawater and brine etc..

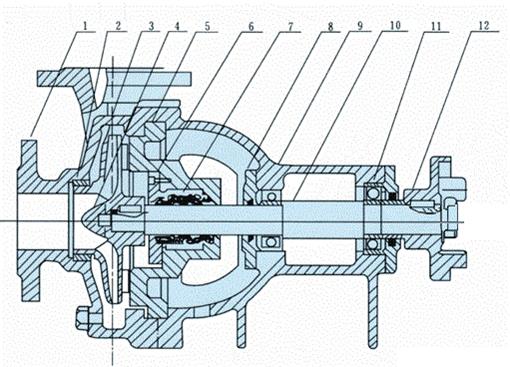

CONSTRUCTION DRAWING
1. Cover Plate 2. Seal Ring 3. Impeller 4. Nut 5. Frame Plate 6. Seal Gland 7. Seal 8. Bearing Gland 9. Bearing House 10. Shaft 11. Bearing 12. Coupling
PERFORMANCE PARAMETERS
| Type | Capacity/Q(m3/h) | Head （m） | Speed/n(r/min) | Max Efficiency η(%) | Max Power (kW) | Size(mm) | |
|---|---|---|---|---|---|---|---|
| Suction | Discharge | ||||||
| SLSAFB25 | 2-6.4 | 12.5-44 | 2960 | 31 | 4 | 25 | 25 |
| SLSAFB40 | 4.1-8.5 | 12-70 | 2960 | 45 | 11 | 40 | 32 |
| SLSAFB50 | 7.9-17.3 | 12-114 | 2960 | 62 | 30 | 50 | 40 |
| SLSAFB65 | 14.8-34 | 12-112 | 2960 | 67 | 37 | 65 | 50 |
| SLSAFB80 | 28.8-70 | 11.5-107 | 2960 | 68 | 37 | 80 | 65 |
| SLSAFB100 | 68.4-130 | 17.5-104 | 2960 | 75 | 55 | 100 | 80 |
| SLSAFB150 | 118.8-226.8 | 17.2-100 | 2960 | 75 | 132 | 150 | 125 |
| SLSAFB200 | 198-540 | 13-62 | 2960 | 80 | 132 | 200 | 150 |
